Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement layer: Polyester fiber or aramid woven layer
Application: Towed tpus, Irrigation, Sludge discharge, Liquid fertilizers discharge, Supply or Drag hose, liquid fertilizers
Features: Optimized Design for Low/No Kink in Tight Turn, TPU Thermoplastic Resin for Highest Abrasion Resistance in a Wide Range of Field Conditions
Color: Black, Red, Blue, others on request
Temperature range: -40℃ to 70℃ (-40℉ to 158℉)
Available length: 30m (100ft) - 200m (660ft), others on request
Delivery time: 15-60 days
Product origin: China

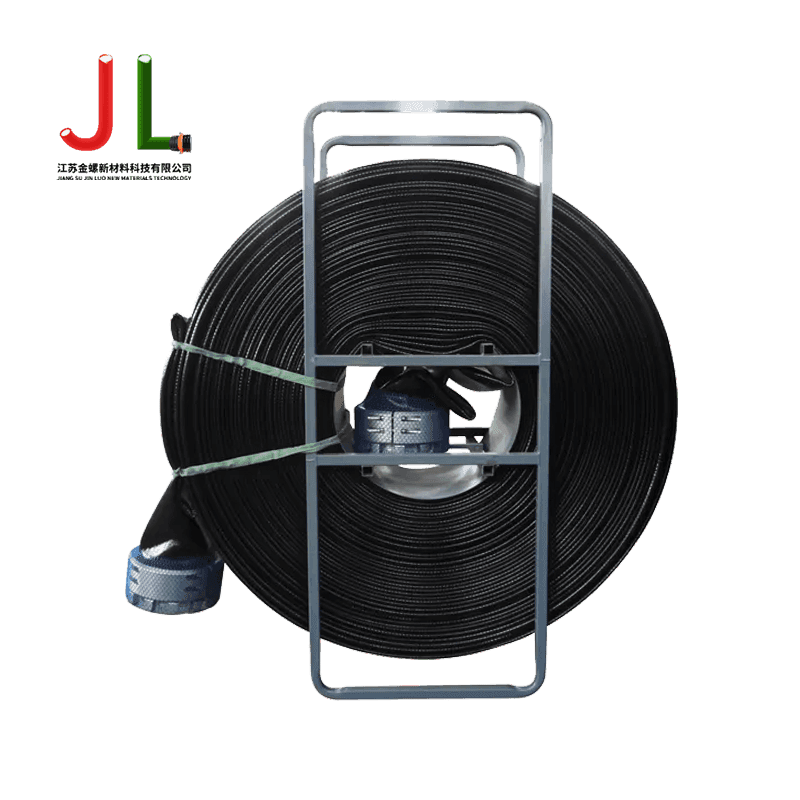

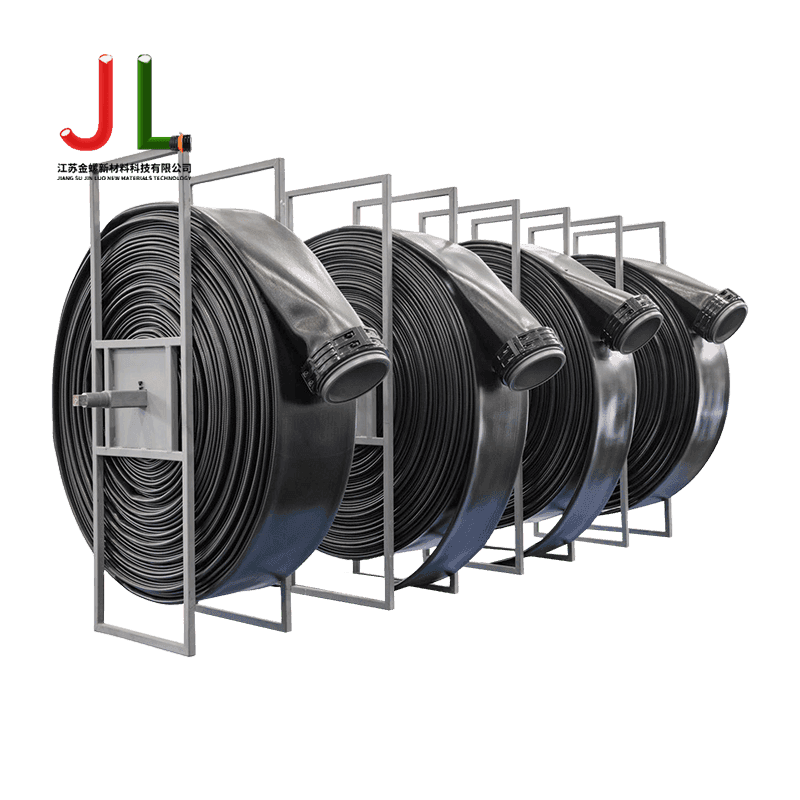

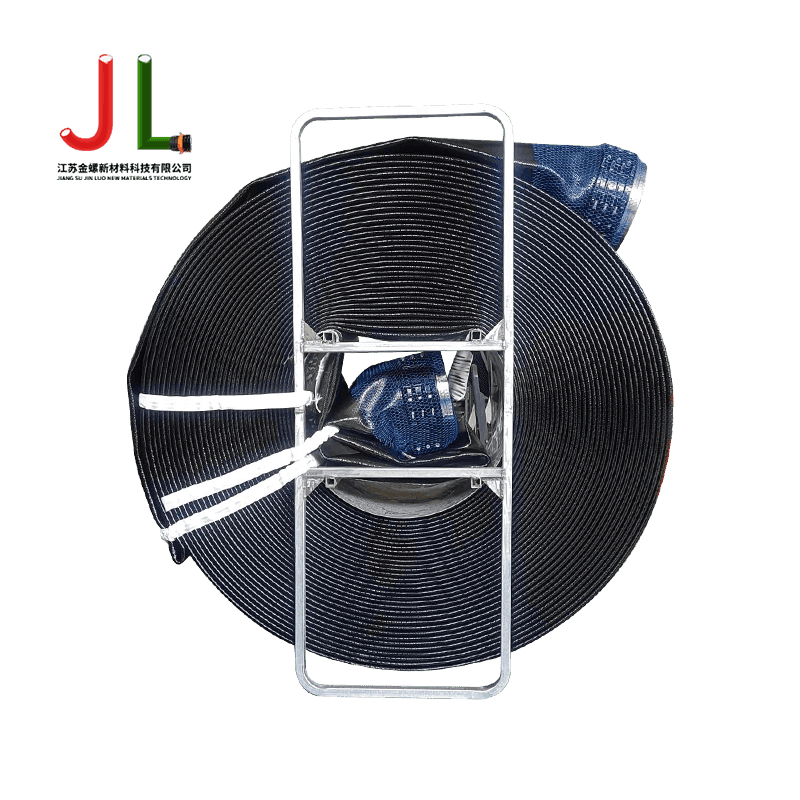

This hose features a reinforced fabric structure and thicker TPU layer, with higher tensile strength and excellent adhesion, making it ideal for heavy-duty slurry transfer and liquid manure handling.
● TPU is extruded through a thicker round braid reinforcement layer, which uses filament polyester fiber thread. Thicker TPU liner and outer cover show extremely high wear resistance on rough surfaces.
● Thicker TPU liner and outer cover provide excellent wear protection, effectively coping with wear on rough surfaces.
● Excellent wear resistance ensures hose durability and extends service life.
● Stable diameter and expansion ensure reliable performance of the hose.
● After releasing pressure, the hose can quickly return to its original diameter to ensure continuous and efficient work.
|
ID |
Working pressure |
Bursting pressure |
Weight |
Wall Thickness |
|
|
Inch |
mm |
PSI/bar |
PSI/bar |
Lbs./ft kg/m |
Inch mm |
|
4" |
103+2.0 |
250/16 |
700/48 |
0.77/1.15 |
0.13/3.3 |
|
5" |
128+2.5 |
400/28 |
1200/84 |
1.51/2.25 |
0.18/4.6 |
|
6" |
153+2.5 |
250/16 |
700/48 |
1.43/2.14 |
0.13/3.4 |
|
8" |
205+3.0 |
250/18 |
783/54 |
2.21/3.3 |
0.17/4.2 |
Note: Parameters such as inner diameter, wall thickness, weight,pressure and color can be customized according to customer requirements.
**All above technical parameters are for reference, details please confirm with JINLUO NEW MATERIAL.
