Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant Customized

HOME / PRODUCTS / Industrial TPU Layflat Hose / Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant

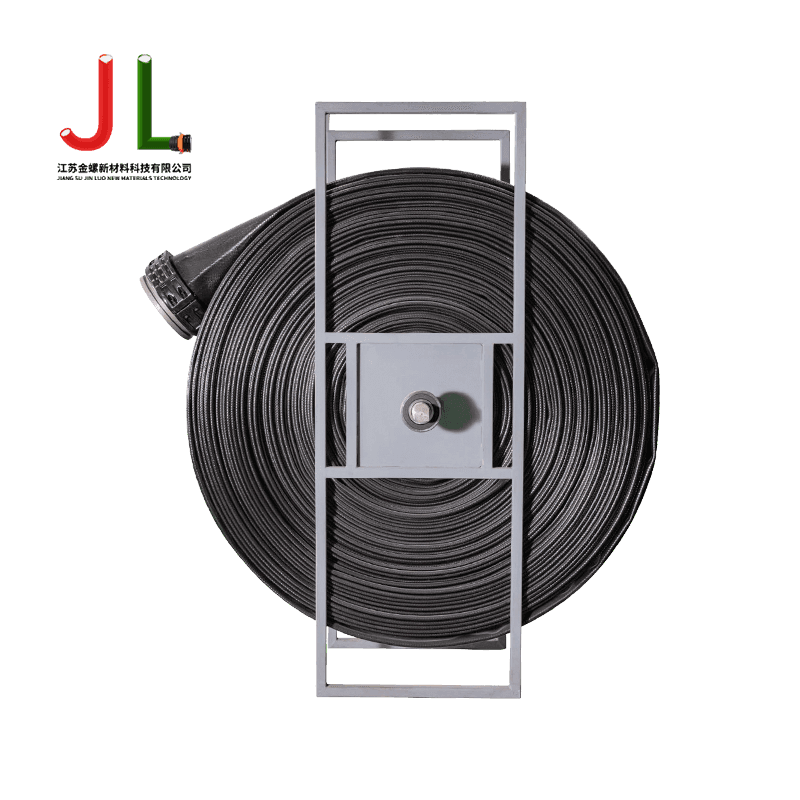

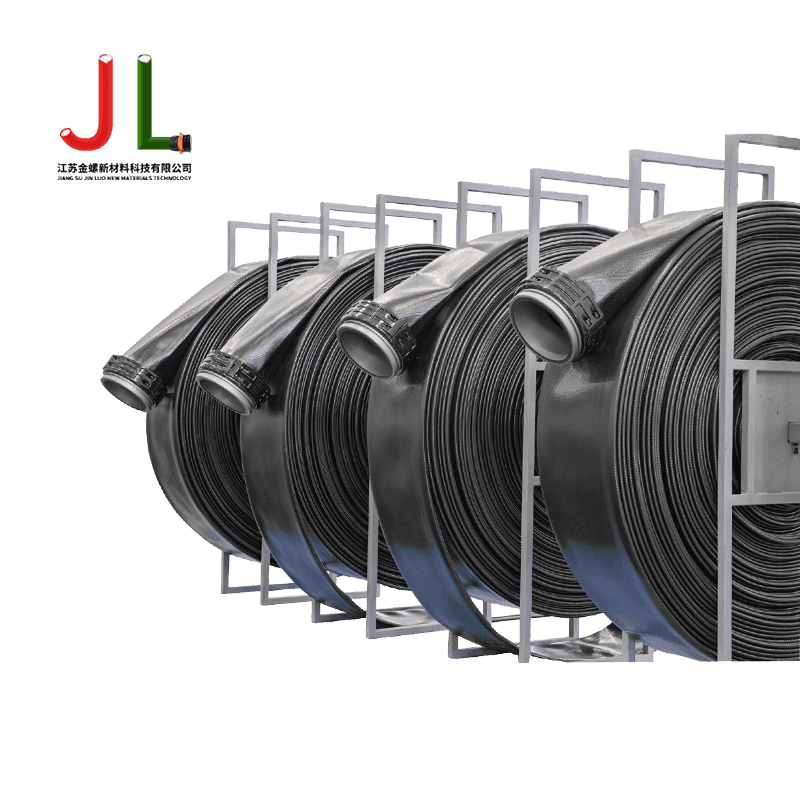

Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant
  • Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant
  • Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant
  • Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant

Jinluo Double-Layer Polyurethane Flat Discharge Hose - Oil-Resistant, Abrasion-Resistant

Cover and Lining: TPU (Extrusion through-the-weave)

Reinforcement layer: Polyester fiber or aramid woven layer

Application: Industrial transportation, High pressure conveying system, Industrial discharge etc

Features: Excellent pipe diameter stability, resistance, oil-resistance abrasion resistance and low elongation

Color: Black, Red, Blue, others on request

Temperature range: -40℃ to 70℃ (-40℉ to 158℉)

Available length: 30m (100ft) - 200m (660ft), others on request

Delivery time: 15-60 days

Product origin: China

Contact Us

Related Products

Product details

The product provides a lighter and softer option for dehydration, heavy-duty cleaning and fluid delivery:

TPU outer layer is extremely wear-resistant and can cope with harsh ground conditions;

TPU lining provides excellent resistance to most chemicals;

Excellent pipe diameter stability and low elongation;

Temperature adaptability range: -40°C to 70°C;

Standard lengths include 50m, 100m, 200m and other sizes, which can also be customized according to needs;

Custom colors, logos and connectors are available.

Structure parameters

ID

Inside Diameter

Working Pressure

Brust Presure

Wall Thickness

Weight

inch

mm

MPa

BAR

PSl

MPa

BAR

PSI

mm

Kg/m

2

50

1.6

16

232

4.8

48

696

2.5-2.9

0.5

2

50

2.8

28

406

8.4

84

1218

3

0.63

2.5

65

2.8

28

406

8.4

84

1218

3.0-3.5

0.85

3

80

2.8

28

406

8.4

84

1218

3.2

1

4

100

1.0

10

145

3.0

30

435

2.7

0.9

4

100

1.6

16

232

4.8

48

696

3.3

1.15

4

100

2.0

20

290

6.0

60

870

3.2-4.2

1.42

4

100

2.8

28

406

8.4

84

1218

4-4.5

1.76

4

100

3.5

35

507

10.5

105

1522

4.0-5.0

1.75

4

100

4.0

40

580

12.0

120

1740

4.8-5.6

2.26

5

125

2.8

28

406

8.4

84

1218

4.4-5.4

2.25

6

150

1.0

10

145

3.0

30

435

2.6-3.0

1.7

6

150

1.4

14

203

4.2

42

609

2.8-3.2

1.8

6

150

1.6

16

232

4.8

48

696

2.9-3.4

2.14

6

150

2.0

20

290

6.0

60

870

4.1-4.6

2.3

6

150

2.4

24

348

7.2

72

1044

5.3-6.3

3.15

6

150

3.0

30

435

9.0

90

1305

5.7-6.2

3.3

8

200

1.0

10

145

3.0

30

435

3.1-3.6

2.5

8

200

1.3

13

188.5

3.9

39

565.5

3.3-3.7

2.6

8

200

1.6

16

232

4.8

48

696

3.4-3.8

2.8

8

200

1.8

18

261

5.4

54

783

4.0-4.4

3.3

8

200

2.1

21

304.5

6.3

63

913.5

5.0-5.2

4.1

8

200

2.4

24

348

7.2

72

1044

5.2-5.8

4.6

8

200

2.8

28

406

8.4

84

1218

4.9-5.3

4

10

250

1.0

10

145

3.0

30

435

3.4-3.9

3.2

10

250

1.3

13

188.5

3.9

39

565.5

3.9-4.4

3.8

10

250

1.6

16

232

4.8

48

696

4.8-5.2

4.4

10

250

2.0

20

290

6.0

60

870

5.2

4.7

12

300

0.5

5

72.5

1.5

15

217.5

2.1-2.3

2.6

12

300

1.0

10

145

3.0

30

435

4.1-4.2

4.3

12

300

1.3

13

188.5

3.9

39

565.5

4.3-4.4

4.8

12

300

1.5

15

217.5

4.5

45

652.5

4.5-4.6

5.1

14

350

1.0

10

145

3.0

30

435

4.3-5.0

5.52

16

400

1.0

10

145

3.0

30

435

4.7-5.2

7

Note: Parameters such as inner diameter, wall thickness, weight, pressure and color can be customized according to customer requirements.

**All above technical parameters are for reference, details please confirm with JINLUO NEW MATERIAL.
