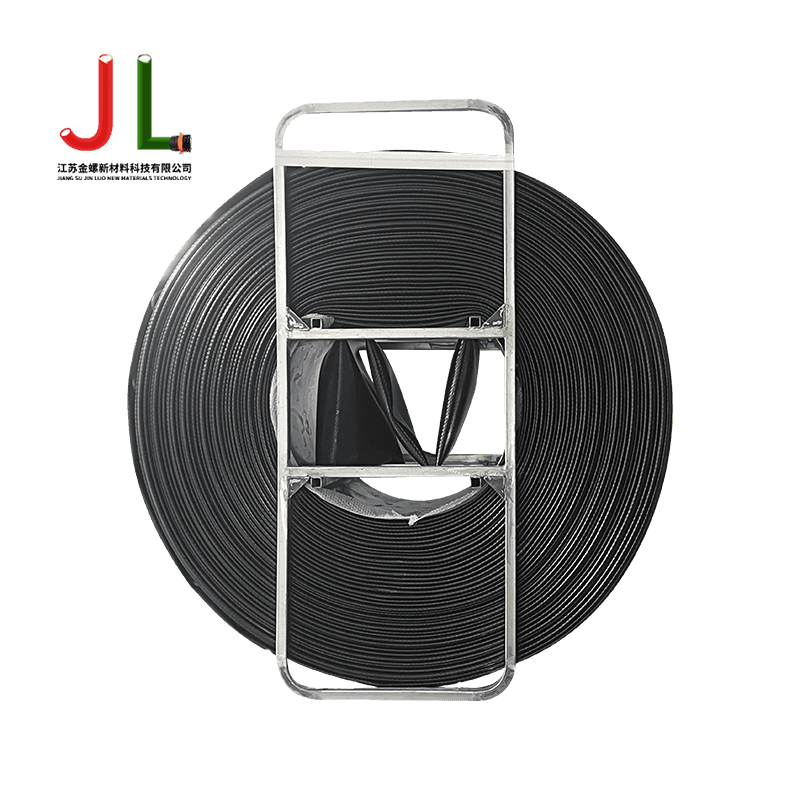

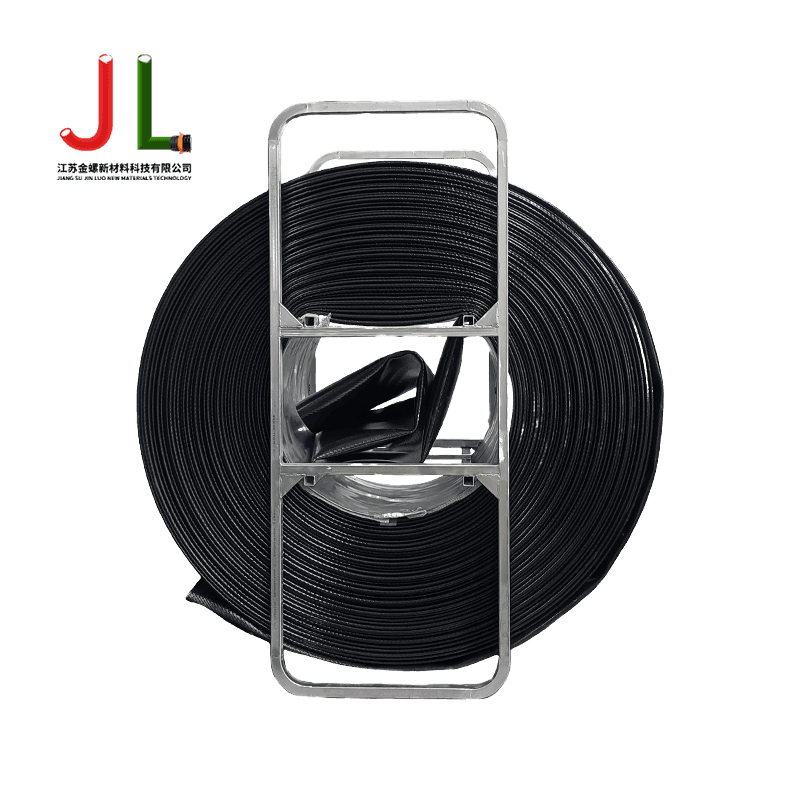

Jinluo Heavy-Duty Polyurethane Pressure Hose - Flexible Reinforced TPU Flat Tubing
  • Jinluo Heavy-Duty Polyurethane Pressure Hose - Flexible Reinforced TPU Flat Tubing
  • Jinluo Heavy-Duty Polyurethane Pressure Hose - Flexible Reinforced TPU Flat Tubing
  • Jinluo Heavy-Duty Polyurethane Pressure Hose - Flexible Reinforced TPU Flat Tubing

Jinluo Heavy-Duty Polyurethane Pressure Hose - Flexible Reinforced TPU Flat Tubing

Cover and Lining: TPU (Extrusion through-the-weave)

Reinforcement layer: Polyester fiber or aramid woven layer

Application: Industrial transportation, High pressure conveying system, Industrial discharge etc

Features: Excellent pipe diameter stability, resistance, heavy-duty, pressure resistance, abrasion resistance and low elongation

Color: Black, Red, Blue, others on request

Temperature range: -40℃ to 70℃ (-40℉ to 158℉)

Available length: 30m (100ft) - 200m (660ft), others on request

Delivery time: 15-60 days

Product origin: China

Contact Us

Related Products

Product details

Made from high-quality, durable polyurethane (TPU), this pressure hose is designed for harsh environments, providing exceptional durability and long-term performance:
Heavy-duty construction: Reinforced polyurethane design ensures exceptional strength , especially for heavy-duty applications that require reliable pressure handling.
Versatile and flexible: This flat hose is extremely flexible and can adapt to a variety of working environments, even in tight or irregular spaces.
High-pressure tolerance: Designed for high-pressure applications.
Corrosion and wear resistance: TPU material has excellent wear resistance, oil resistance and chemical corrosion resistance, ensuring long-term excellent performance and structural integrity in complex environments.

Structure parameters

ID

Inside diameter

Working pressure

Brust presure

Wall thickness

Weight

inch

mm

MPa

BAR

PSl

MPa

BAR

PSI

mm

Kg/m

2

50

1.6

16

232

4.8

48

696

2.5-2.9

0.5

2

50

2.8

28

406

8.4

84

1218

3

0.63

2.5

65

2.8

28

406

8.4

84

1218

3.0-3.5

0.85

3

80

2.8

28

406

8.4

84

1218

3.2

1

4

100

1.0

10

145

3.0

30

435

2.7

0.9

4

100

1.6

16

232

4.8

48

696

3.3

1.15

4

100

2.0

20

290

6.0

60

870

3.2-4.2

1.42

4

100

2.8

28

406

8.4

84

1218

4-4.5

1.76

4

100

3.5

35

507

10.5

105

1522

4.0-5.0

1.75

4

100

4.0

40

580

12.0

120

1740

4.8-5.6

2.26

5

125

2.8

28

406

8.4

84

1218

4.4-5.4

2.25

6

150

1.0

10

145

3.0

30

435

2.6-3.0

1.7

6

150

1.4

14

203

4.2

42

609

2.8-3.2

1.8

6

150

1.6

16

232

4.8

48

696

2.9-3.4

2.14

6

150

2.0

20

290

6.0

60

870

4.1-4.6

2.3

6

150

2.4

24

348

7.2

72

1044

5.3-6.3

3.15

6

150

3.0

30

435

9.0

90

1305

5.7-6.2

3.3

8

200

1.0

10

145

3.0

30

435

3.1-3.6

2.5

8

200

1.3

13

188.5

3.9

39

565.5

3.3-3.7

2.6

8

200

1.6

16

232

4.8

48

696

3.4-3.8

2.8

8

200

1.8

18

261

5.4

54

783

4.0-4.4

3.3

8

200

2.1

21

304.5

6.3

63

913.5

5.0-5.2

4.1

8

200

2.4

24

348

7.2

72

1044

5.2-5.8

4.6

8

200

2.8

28

406

8.4

84

1218

4.9-5.3

4

10

250

1.0

10

145

3.0

30

435

3.4-3.9

3.2

10

250

1.3

13

188.5

3.9

39

565.5

3.9-4.4

3.8

10

250

1.6

16

232

4.8

48

696

4.8-5.2

4.4

10

250

2.0

20

290

6.0

60

870

5.2

4.7

12

300

0.5

5

72.5

1.5

15

217.5

2.1-2.3

2.6

12

300

1.0

10

145

3.0

30

435

4.1-4.2

4.3

12

300

1.3

13

188.5

3.9

39

565.5

4.3-4.4

4.8

12

300

1.5

15

217.5

4.5

45

652.5

4.5-4.6

5.1

14

350

1.0

10

145

3.0

30

435

4.3-5.0

5.52

16

400

1.0

10

145

3.0

30

435

4.7-5.2

7

Note: Parameters such as inner diameter, wall thickness, weight, pressure and color can be customized according to customer requirements.

**All above technical parameters are for reference, details please confirm with JINLUO NEW MATERIAL.
